Choosing between Host Based Routing and SIP Registration

From MiRTA PBX documentation
Jump to navigation Jump to search

MiRTA PBX doesn't support natively SIP registration for Providers, but you can manually configure them in sip.conf

Here a simple example about a static registration in sip.conf

[general]
...
register => 49088751:cyj74rrjd8gg@sip.flowroute.com

If you want, you can also define statically the SIP provider in sip.conf and then reference them in the Admin/Providers section. Doing a static configuration should be avoided because any change in the provider configuration will require a reload, but it can be needed if a parameter not yet supported by the web interface needs to be used.

[flowroute]
type=friend
secret=cyj74rrjd8gg
defaultuser=49088751
username=49088751
fromuser=49088751
host=sip.flowroute.com
dtmfmode=rfc2833
context=fromoutside
canreinvite=yes
allow=ulaw
allow=alaw
allow=gsm
insecure=port,invite
fromdomain=sip.flowroute.com

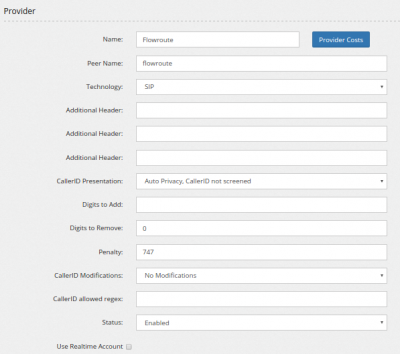

In the web interface, you'll reference the tag in square brackets [flowroute]


Once sip.conf has been edited, to have it working, doing a sip reload is needed. Take in mind doing a sip reload will trash all clients registrations. Phones will be unavailable until new registration.

Before choosing to go with the SIP registration, please take the time to read

https://blog.flowroute.com/2014/07/09/sip-registration-vs-host-based-routing-which-side-wins/
