Let's focus on a common need. A BLF key to change from Night to Day mode, so it can be toggle anytime, but also to be automatic triggered at specified time.

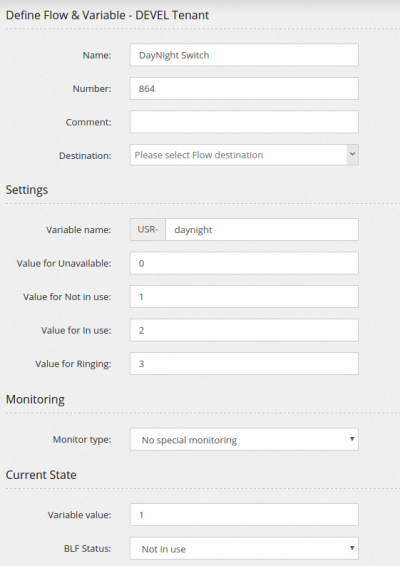

The core of this feature is a Flow, so let's start creating a Flow containing the definition of a variable used to hold the status.


This Flow, assigned the number 864, can be monitored with the BLF 864-DEVEL (DEVEL is the tenant code for the tenant used)

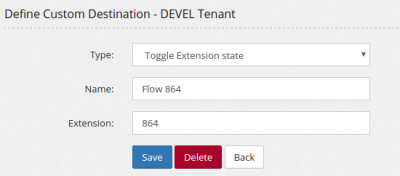

As you may have noticed, there is no destination for this Flow. Let's create a Custom Destination to toggle its status

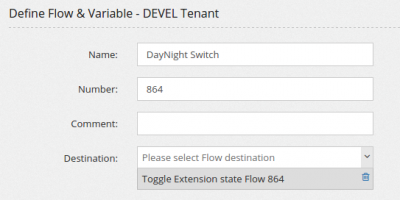

Now assign the Custom Destination above to the Flow, as action
